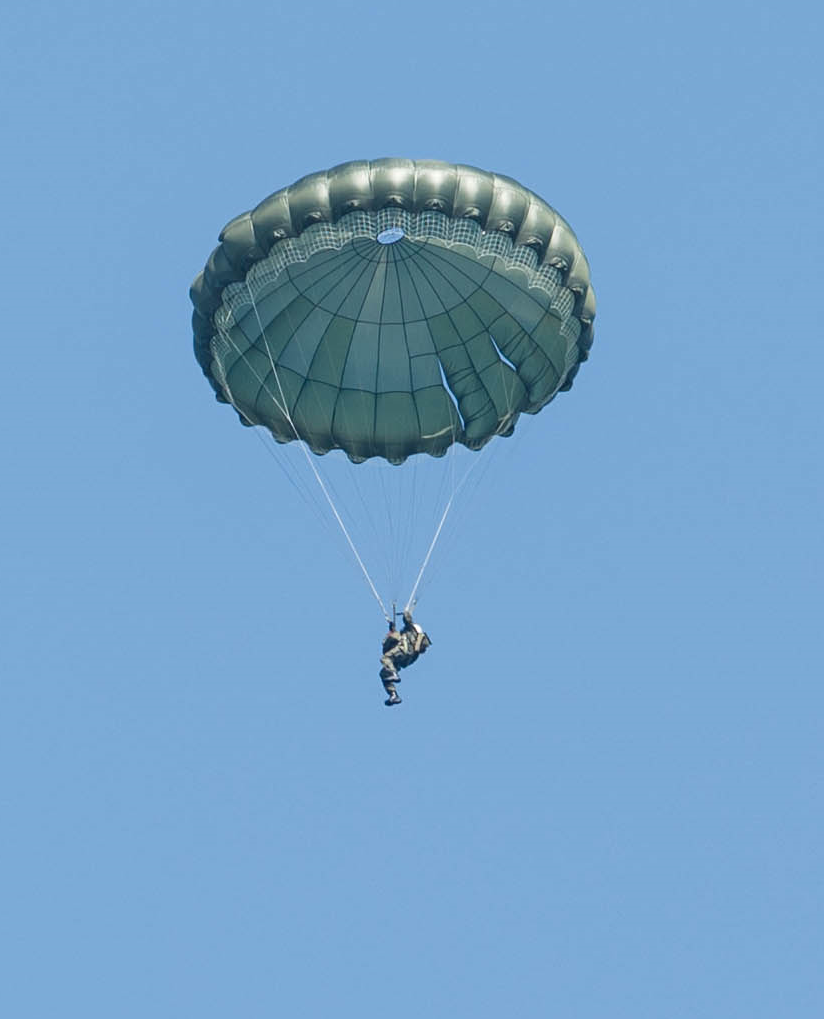

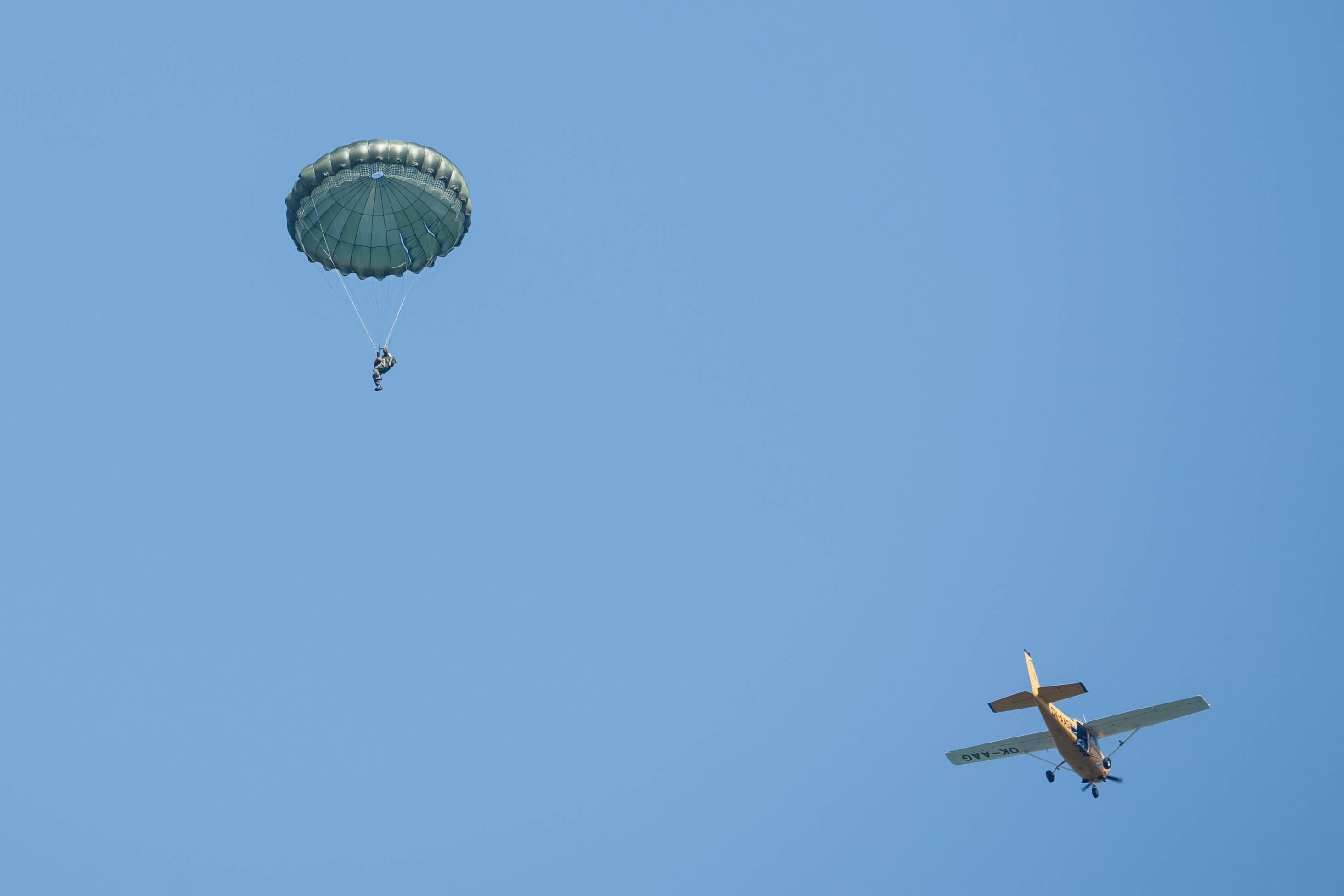

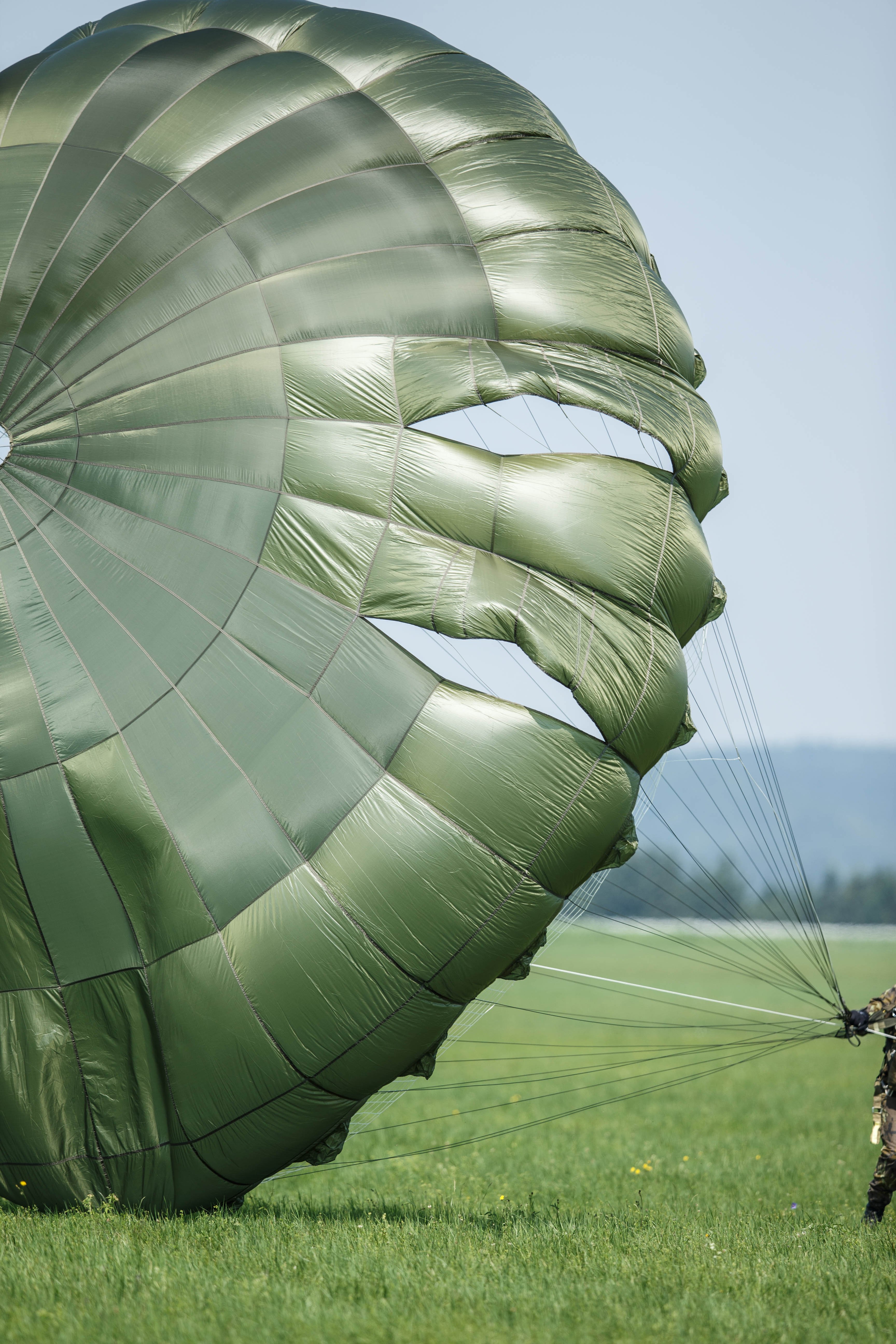

OVP-12 SL-3 NSN 1670160066804

  • The newest troop main parachute is designed for the execution of combat and training jumps, individual, group and mass jumps from military aircrafts and helicopters
  • The parachute enables performing jumps with enforced opening by means of static line
  • The parachute can be steered and it has two steering components
  • The parachute forms a set reserve parachute ZVP-80.08B
  • Canopy area 80 ± 2 m2 (861.1 ± 22 sqft)
  • Maximum operating weight of the paratrooper with outfit and kit 182 kg (401.2 lb)
  • Jump from aircraft during the dispatch speed from 100 km.h-1 to 278 km.h-1 (from 54 to 150.1 kt EAS)
  • Minimum application height 150 mT (492 ft AGL)
  • Maximum application height 4000 mT (13123.2 ft AGL)
  • Ground wind speed from 0 to maximum 8 m.s-1 including (from 0 to maximum 26.2 ft/s including)
  • Special Cargo system NSV-12 is available to use with releasing before landing.
